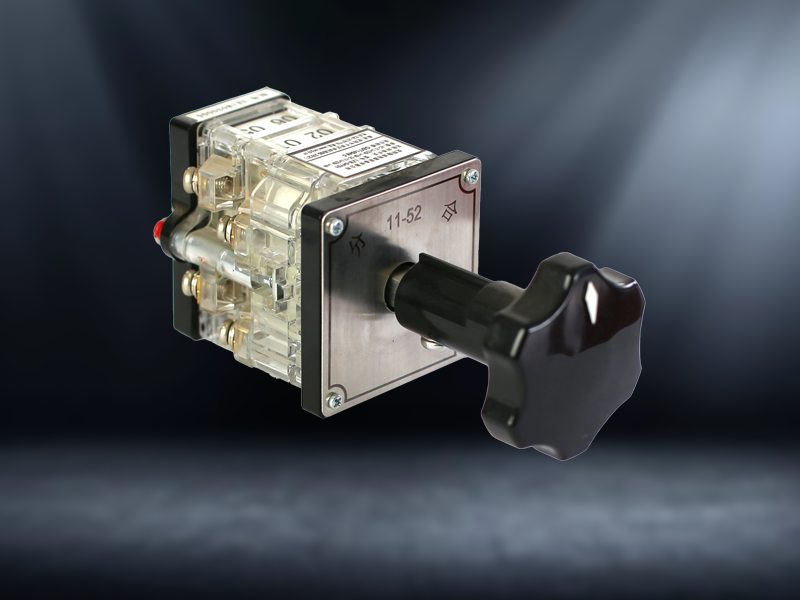

Product Introduction
The transfer switch is used for manually and infrequently connecting and disconnecting circuits for control or conversion purposes. It can also be used as a circuit control switch, test equipment switch, or master control switch. It is widely applied in industries such as power, industrial automation, and process automation. Its large-capacity on-off capability effectively overcomes the shortcomings of other transfer switches, such as limited capacity and low contact life, significantly extending the product's service life. It is an effective alternative to other similar changeover switches.

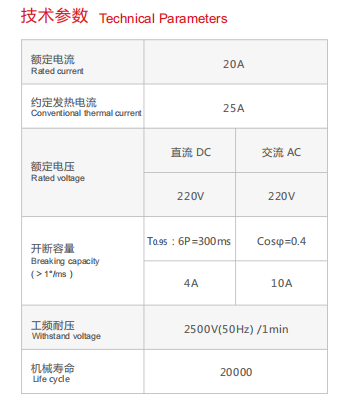

Switch selection
1K1B、2K2B、5K5B
Application equipment
Electric mechanism
Environmental conditions
1、Ambient air temperature: -40℃ to +70℃;
2. Altitude: No more than 5,000 meters;
3. Humidity: The average relative humidity within 24 hours shall not exceed 95%. The average pressure of water vapor does not exceed 2.2kPa. The monthly average relative humidity shall not exceed 90%. The average pressure of water vapor does not exceed 1.8kPa.
4. The vibration acceleration shall not exceed 15m/s².
5. The surrounding air is not obviously polluted by dust, smoke, corrosive or flammable gases.
Working principle
The LZB series transfer switch adopts a manually driven structure. By manually rotating the handle, the square shaft rotates to drive the CAM, and then the CAM pushes the switch connecting rod, causing the moving contact piece to move, thereby achieving connection or disconnection to control the electrical circuit. The positioning mechanism serves the functions of positioning and resetting.

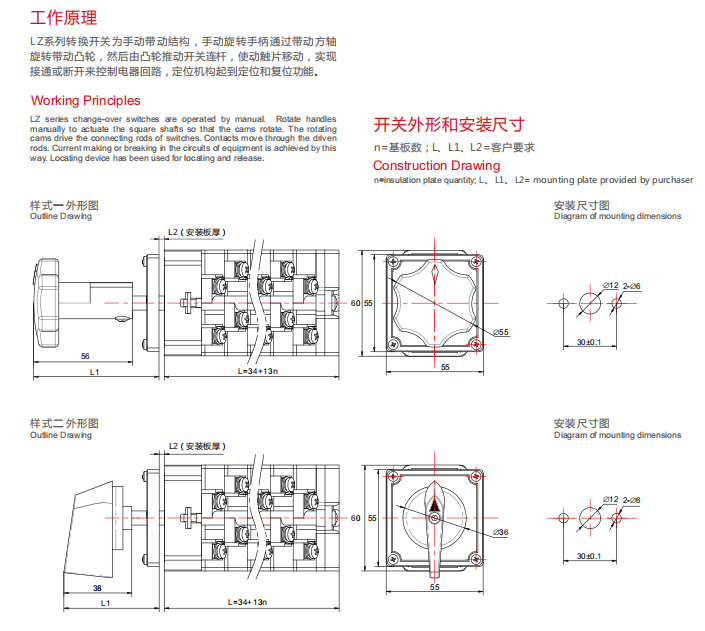

Switch structure
The LZB series changeover switches feature flexible switching operations, compact structure, and high safety and reliability. It adopts a multi-position design, with the positioning type capable of controlling up to 12 positions. The number of switch poles and the on-off Angle can be flexibly combined. The fixed contact piece and the moving contact piece are made of high-quality brass, and the contacts are made of silver-nickel alloy composite contacts, featuring a large on-off capacity and a long contact life. The insulating sheet is made of high-quality flame-retardant chemical fiber material, which is heat-resistant, has high strength, good insulation performance, and a reasonable structure to prevent dust. It can be well used in various electrical equipment.
Wiring method
Insertion and crimping
