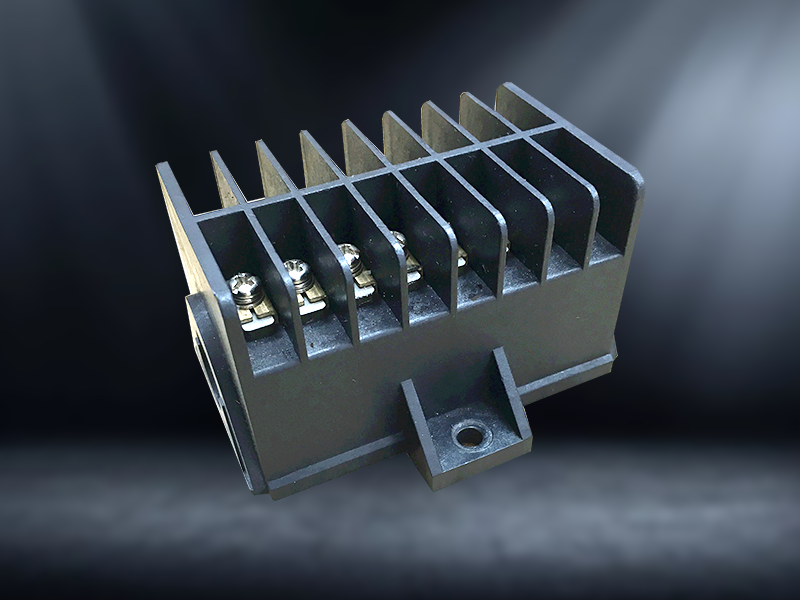

Product Introduction
The LFF series auxiliary switches are one of the supporting components for high-voltage complete sets of equipment. They are suitable for controlling the closing, opening, interlocking, and signal circuits of various high-voltage switch operating mechanisms, and can also be used as conversion or combination switches.
The LFF series auxiliary switches feature two wiring methods: plug-in and crimping. Moreover, the wire outlet direction is on one side, making them convenient for use in Spaces with limited space.
The LFF series auxiliary switches can achieve various on-off timing changes by altering the assembly direction inside. The contact parts are made of high-quality copper, and the surface is silver-plated to enhance the connection reliability and breaking capacity.
Environmental conditions
1.Ambient temperature: -25℃ to +80℃;
2. Altitude: No more than 5,000 meters;
3. Humidity: The average relative humidity within 24 hours shall not exceed 95%. The average pressure of water vapor does not exceed 2.2KPa. The monthly average relative humidity shall not exceed 90%. The average pressure of water vapor does not exceed 1.8KPa.
4. The vibration acceleration shall not exceed 15m/s; 2
5. The surrounding air is not significantly polluted by dust, smoke, corrosive or flammable gases.
Working principle
The LFF series auxiliary switches can achieve various on-off timing changes by altering the assembly direction inside. The contact parts are made of high-quality copper, and the surface is silver-plated to enhance the connection reliability and breaking capacity.
Wiring method
Crimping, insertion
