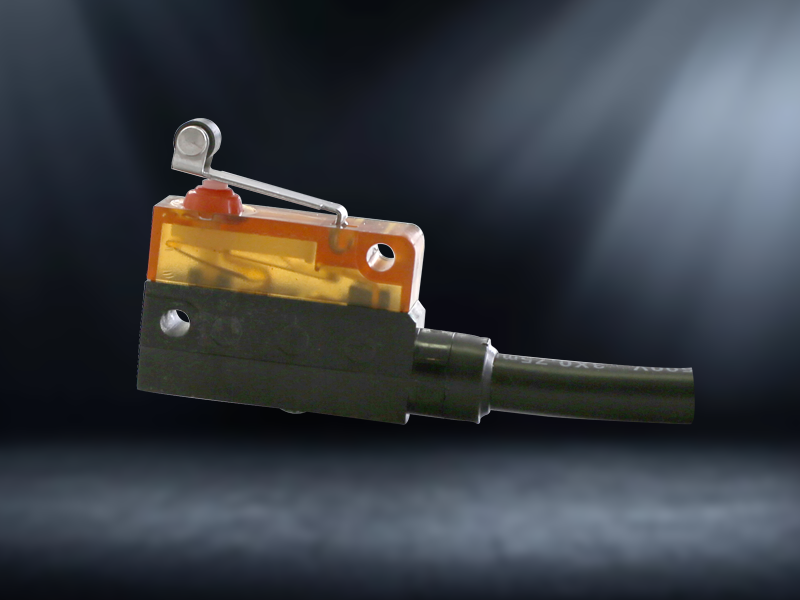

The S10X series limit switches adopt a reinforced design, featuring a high resistance to damage. The contacts are designed for quick opening and closing, ensuring a high load capacity even when used in slow-moving limit devices and mechanical detection scenarios. It is also equipped with a forced breaking device, which ensures reliable breaking capacity. Even in the event of contact adhesion due to overload or short circuit, it can still be forced to break. Therefore, it is particularly suitable for applications with high safety requirements.

The S10X series limit switches adopt a self-cleaning contact design, which can effectively protect against dust, moisture and contaminants in the environment, making the switches highly reliable and sensitive. Combining a compact design and multiple installation methods, it is highly suitable for use in automation control, interlocking and other low-voltage and low-current signal control applications.

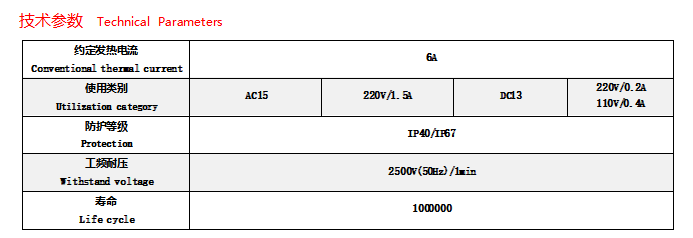

The S10X series limit switches have an overall protection grade of IP40/IP67. The surfaces of all internal electrical connection components are electroplated with pure silver or gold, featuring reliable connection and strong current-carrying capacity.

1. Ambient temperature: -40℃ to +85℃;

2. Altitude: No more than 5,000 meters;

3. Humidity: The average relative humidity within 24 hours shall not exceed 95%. The average pressure of water vapor does not exceed 2.2KPa. The monthly average relative humidity shall not exceed 90%. The average pressure of water vapor does not exceed 1.8KPa.

4. The vibration acceleration shall not exceed 15m/s ²;

5. The surrounding air is not significantly polluted by dust, smoke, corrosive or flammable gases.
