The CWA series magnetic blow microswitch is one of the electrical components for high-voltage complete sets of equipment. It is suitable for collecting signals such as travel, rotation Angle and limit of various moving mechanisms. It can also be combined into auxiliary switches in high-voltage mechanisms to control signals such as closing, opening and interlocking.

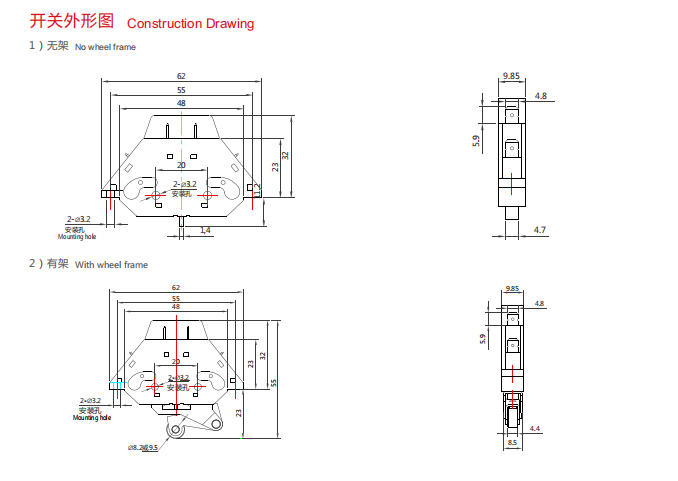

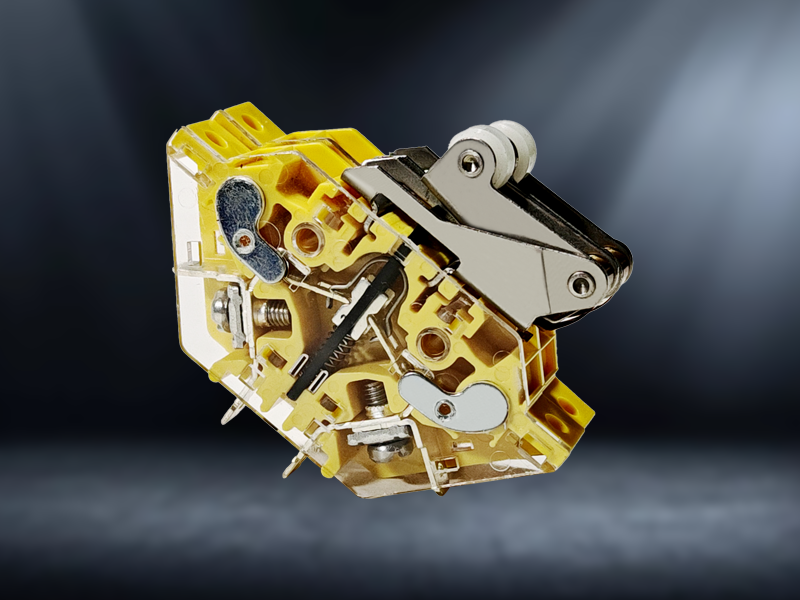

The CWA series magnetic-blown microswitch is composed of a sheet-like housing and internal components. All the moving contact pieces, fixed contact pieces and connecting parts are made of copper with silver plating. The insulating shell is made of high-quality flame-retardant and high-temperature resistant materials, which are of high strength, good insulation performance, reasonable structure and good dust-proof performance. The external connection method of the switch can be inserted in two forms: top and bottom. Normally closed, normally open and polarity are indicated by different colors, which is very convenient for customers to choose when using.
